New Kollmorgen Servostar 601 S60100 Servo Drive
$1,745.00
Brand: Kollmorgen
Model: Servostar 601 S60100
MPN: Servostar 601 S60100
Description: 1PC Kollmorgen Servostar 601 S60100 Servo Drive 1 ARM 230-480 VAC 50-60 HZ New In Box Fast Ship With One Year Warranty Fedex/DHL/UPS
Type: Servo Drive
Condition: New
10 in stock
Description

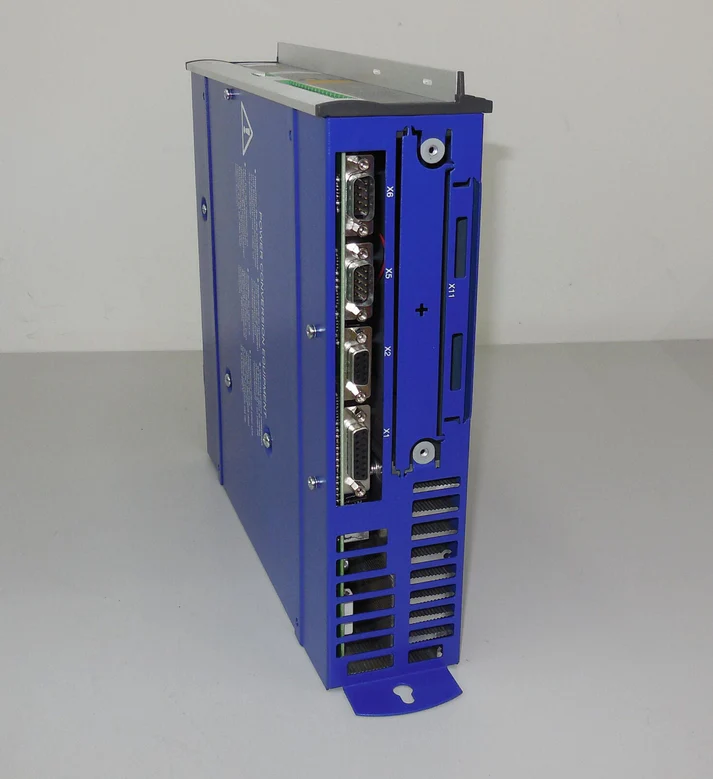

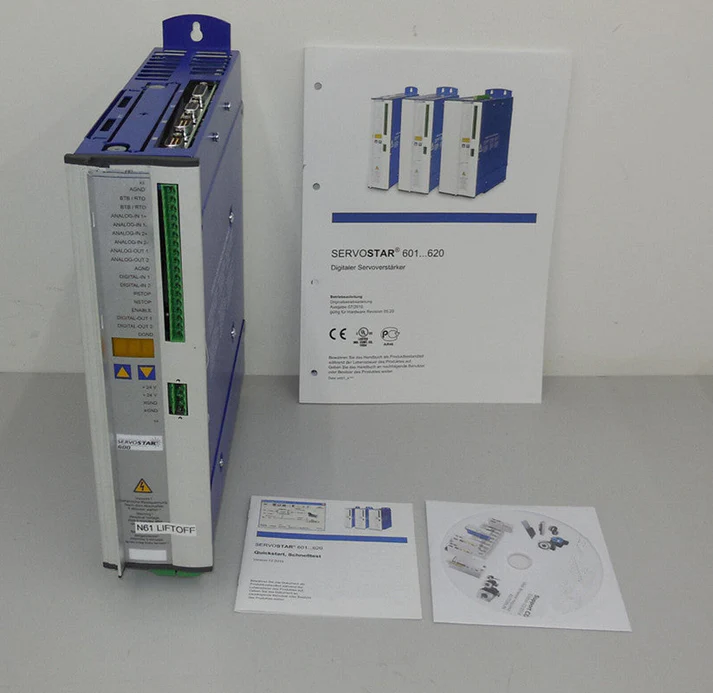

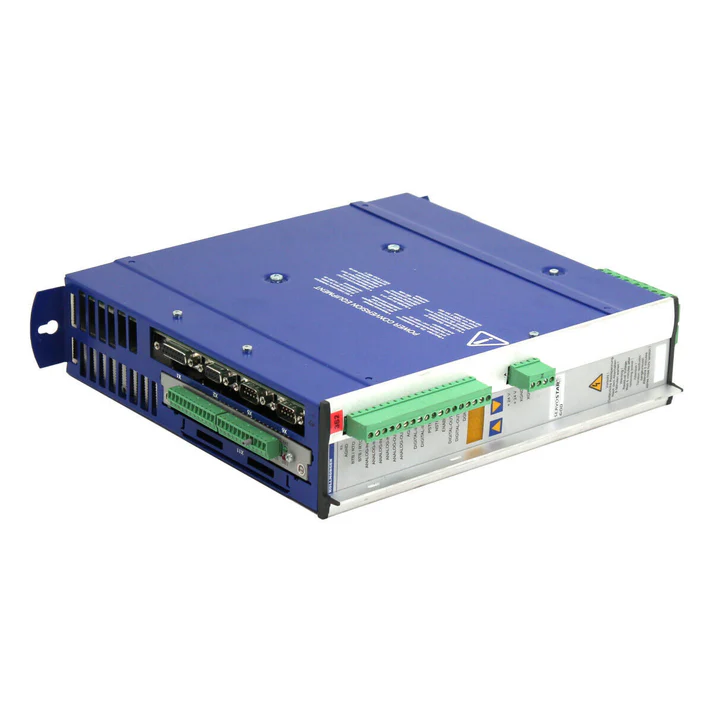

The Kollmorgen Servostar 601 S60100 is a standard compact digital servo drive for micro‑motion control. It operates on 3‑phase 208–480 VAC, provides 1.5A continuous / 3A peak current, and employs FOC closed‑loop control. With multi‑feedback support and 8/16 kHz PWM, it offers cost‑effective precise control for low‑power automation systemsKollmorgen
| Model | Kollmorgen Servostar 601 S60100 |
| Input Voltage | 3‑phase 208–480 VAC, 50/60 Hz, ±10% |
| Output Voltage | 0 to input line voltage (3‑phase, proportional to speed/torque demand) |
| Output Current | 1.5 A continuous RMS, 3 A peak RMS (peak ≤5s) |
| Control Type | Digital Field Oriented Control (FOC), closed‑loop torque/velocity/position control |
| Feedback Type | Incremental encoder, resolver, sine/cosine encoder, Hall sensors, SSI/EnDat/Hiperface |
| PWM Frequency | 8 kHz / 16 kHz (2‑stage selectable) |
